Boolean Retrieval: AND, OR, and NOT in Search

Search does not always need to infer a user’s meaning. Sometimes the user knows which words are necessary or not permitted.

For example:

api AND authenticationinvoice OR receiptwebhook AND NOT legacy

These are Boolean queries. Boolean retrieval uses a match-or-no-match model.

We will use a small documentation site as an example. First, Boolean operators select the matching pages. Then, the ranking system orders those pages.

What is Boolean retrieval?

Boolean retrieval finds documents that satisfy logical conditions.

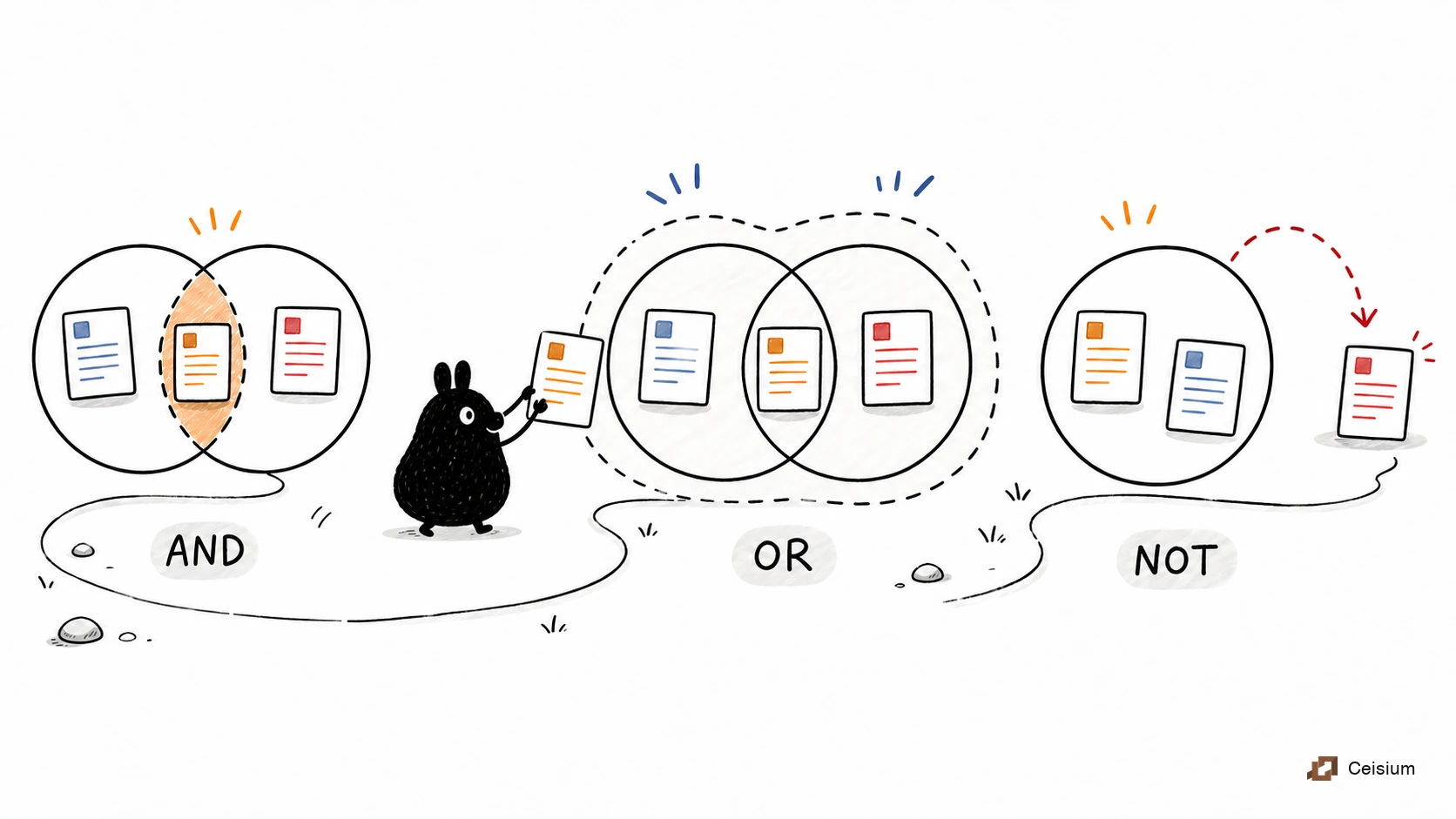

Each query term has a set of matching documents. Boolean operators combine those sets:

• AND keeps documents that occur in both sets.
• OR keeps documents that occur in either set or both sets.
• NOT B keeps documents outside set B in a defined search universe.
• A AND NOT B removes set B from set A.

Boolean operators give users direct control when they know which documents are acceptable.

Boolean retrieval defines the matching logic. The search engine defines the query syntax, supported operators, and scoring behavior.

A five-page documentation site

All examples use the following five pages.

A full-text search system usually analyzes page text before it searches. It converts selected text into indexed terms.

The system also converts the query into compatible terms. It then gets the document set for each query term.

For example:

Raw page text: "Create API keys"Indexed terms: api, keyMatch set for key: {D1, D2, D5}

The Complete indexed terms column contains all indexed terms for each page.

The example analyzer does these operations:

• It converts uppercase letters to lowercase.
• It removes punctuation.
• It reduces simple plurals such as keys to key.
• It does not stem other words or add synonyms.

These are the match sets:

api            -> {D1, D2, D5}key            -> {D1, D2, D5}authentication -> {D2, D3}webhook        -> {D3, D4}retry          -> {D4}legacy         -> {D5}

The search engine can get these sets from an inverted index Search / Jul 15, 2026 What Is an Inverted Index? An inverted index maps terms to the documents that contain them, helping search engines find text matches without scanning every page. . The index records the documents that contain each term.

AND means intersection

AND requires both conditions. It does not require adjacent words. Exact phrase matching is a separate feature.

Use this query:

api AND authentication

The api set is {D1, D2, D5}. The authentication set is {D2, D3}.

AND keeps their intersection:

{D1, D2, D5} ∩ {D2, D3} = {D2}

Only D2 matches. D1 does not contain authentication, and D3 does not contain api.

Now use this query:

webhook AND authentication

The two sets are:

webhook        -> {D3, D4}authentication -> {D2, D3}

Their intersection is {D3}.

AND usually makes the result set smaller. Each added condition removes documents that do not satisfy it.

An AND condition can make a broad query more precise.

OR means union

Boolean OR is usually inclusive. A document can satisfy the left clause, the right clause, or both clauses.

Use this query:

api OR authentication

The sets overlap at D2:

api            -> {D1, D2, D5}authentication -> {D2, D3}

OR combines the sets:

{D1, D2, D5} ∪ {D2, D3} = {D1, D2, D3, D5}

D2 occurs once in the result set. D1 and D5 match api, and D3 matches authentication.

OR usually makes the set larger. It is useful when two terms are acceptable alternatives:

invoice OR receipterror OR failureremove OR delete

The query lists the acceptable alternatives. Do not assume that the engine knows they are related.

NOT means exclusion

NOT starts with a defined search universe. It keeps the documents outside the excluded set.

Our complete universe is:

U = {D1, D2, D3, D4, D5}

This query removes the legacy set:

NOT legacy

The result is:

U - {D5} = {D1, D2, D3, D4}

Now use:

api AND NOT legacy

The api set is {D1, D2, D5}. Remove D5 because it contains legacy:

{D1, D2, D5} - {D5} = {D1, D2}

Some query languages permit api NOT legacy. Others require api AND NOT legacy.

Some languages do not permit a standalone NOT query. The parser grammar controls the valid forms.

The universe can be one site, project, language, or collection. Without this boundary, NOT legacy has no complete set to search.

AND keeps the overlap. Inclusive OR keeps either side or both. NOT removes an excluded set from a defined universe.

Parentheses show the intended order

A query can contain several operators:

api OR webhook AND authentication

The query has two possible meanings.

The first meaning is:

(api OR webhook) AND authentication

api OR webhook matches all five pages. The authentication condition reduces this set to {D2, D3}.

The second meaning is:

api OR (webhook AND authentication)

webhook AND authentication matches D3. The final union is {D1, D2, D3, D5}.

The two groupings return different document sets.

Many Boolean systems apply NOT before AND and AND before OR. Do not assume that every product uses this order.

Parsers can use different precedence rules, case rules, or symbols. Parentheses show the intended grouping.

Use explicit parentheses for mixed operators. Also, use the syntax in the product documentation.

Results from the example corpus

Text analysis changes the input sets

Boolean matching usually operates on analyzed terms, not direct character strings.

An analyzer can do these operations:

• Convert text to lowercase
• Split text into tokens
• Remove punctuation
• Reduce words to a common root
• Remove common words
• Expand synonyms
• Apply language rules

Our analyzer changes API keys to api and key. Thus, key can match a page that contains keys.

The analyzer does not connect authenticated to authentication. Therefore, D1 is absent from the authentication set.

A different stemmer can produce this larger set:

authentication -> {D1, D2, D3}

The Boolean logic is unchanged. AND still calculates an intersection. The analyzer changed the input sets.

Analyzer: Which indexed terms match this query clause?Boolean logic: How should the match sets combine?

You must know both parts to explain a Boolean result.

Text clauses and structured filters are different

A Boolean text clause searches analyzed content:

api AND key

A structured filter checks exact field values or metadata. This example is pseudocode, not portable syntax:

section = "guides"version = "v2"language = "python"

Text clauses can search titles, headings, and body content. Filters can check product, version, language, category, date, or workspace.

A request can use both:

Text query:(api AND key) AND NOT legacyFilters:version = "v2"section = "guides"

The text query checks analyzed terms. The filters restrict the candidates with structured data.

Authorization is a mandatory system constraint. User query syntax must not weaken it.

For one user, the search universe must contain only permitted documents. A user-controlled NOT private clause is not access control.

Useful cases for Boolean retrieval

Boolean retrieval works well when the user knows precise terms.

Require an important term

webhook AND authentication

This query removes general webhook pages that do not discuss authentication.

Accept two names

member AND (remove OR delete)

The alternatives can find pages that use either verb.

Exclude marked old content

api AND key AND NOT legacy

The query works only when legacy is a reliable marker. Structured version data is safer when it is available.

Search exact technical terms

Boolean clauses can combine error codes, function names, product names, fields, and protocols.

ERR_AUTH_42 AND webhook

The analyzer controls whether ERR_AUTH_42 stays one term. Use the engine’s exact field and syntax when the complete identifier is necessary.

Build advanced search controls

An interface can provide these controls:

Must containMay containMust not contain

The interface can convert them to Boolean clauses. Users do not need to learn the raw syntax.

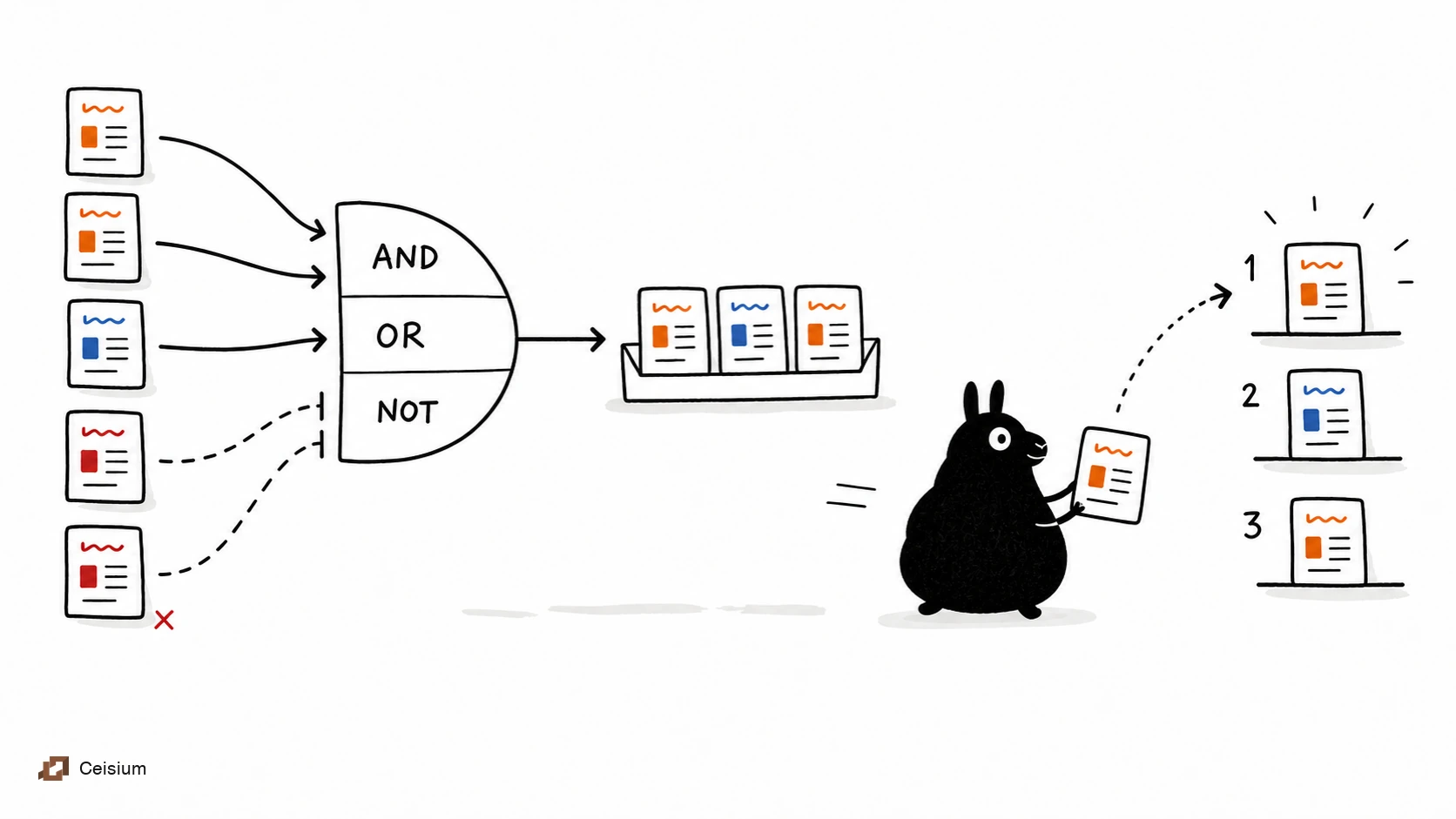

Candidate selection is not ranking

Boolean retrieval answers one question: Which documents can match?

Boolean retrieval does not always answer a second question: Which matching document must appear first?

The query api AND key matches D1, D2, and D5. Basic Boolean logic treats all three as matches.

A ranker can then use term frequency, title matches, or other evidence to set the order.

BM25 Search / Jun 24, 2026 What is BM25? A Plain English Guide BM25 is a keyword search ranking function that scores documents using term frequency, term rarity, and document length. Learn how it works, where it helps, and how it differs from TF-IDF. is one method for lexical ranking. A system can enforce Boolean conditions and then rank the permitted documents.

Some engines also let scored Boolean clauses affect the order. Check the documented behavior of your engine.

Boolean logic defines the eligible set. A ranker then decides which candidate appears first.

Limits of Boolean retrieval

Boolean retrieval gives control, but the user must select useful terms.

This query can be too strict:

api AND authentication AND bearer AND rotation

The result is empty if no page contains every analyzed term.

This query can be too broad:

api OR authentication OR request OR token

Common terms can admit many weak candidates.

NOT also needs care. python NOT legacy removes a current page that only mentions a legacy comparison.

Boolean retrieval does not solve all vocabulary differences. remove teammate can miss a page named Delete workspace member.

An analyzer, synonym rule, or explicit alternative can connect those terms.

Search engines can also support phrases, proximity, field rules, wildcards, and fuzzy matching. Boolean operators do not define those features.

Summary

Boolean retrieval combines document sets:

• AND calculates an intersection.
• OR calculates an inclusive union.
• NOT excludes a set from a defined universe.
• Parentheses show the intended order for mixed operators.
• Text analysis determines which documents enter each term set.
• Structured filters operate on fields and metadata.
• Authorization defines a mandatory permitted universe.
• Boolean logic selects candidates, and ranking puts them in order.

In our five-page corpus, api AND NOT legacy returns D1 and D2. D5 contains api, but the legacy condition removes it.

Boolean retrieval has two steps. First, build the match sets. Then, combine them with explicit logical rules.
